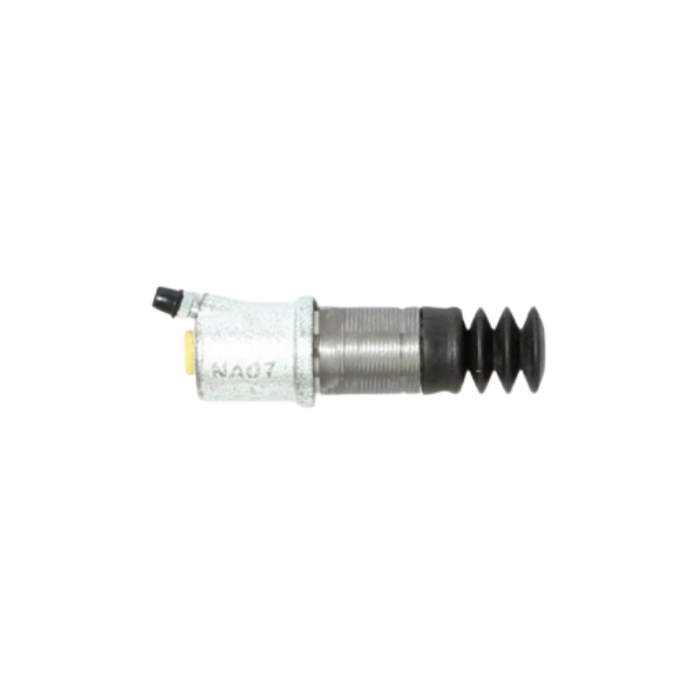

Clutch Slave Cylinder Volvo 240 740 940 Retained Piston

Clutch slave cylinder for Volvo 240/740/940 – retained piston

Hydraulic clutch slave cylinder for Volvo 200, 700 and 900-series applications using the version with an externally retained piston and circlip.

• Piston retained by an external circlip
• Easy to distinguish from the loose-piston version
• Suitable for selected hydraulic-clutch Volvo 240, 740 and 940 applications
• Designed for DOT 4 or glycol-based DOT 5.1 fluid

Technical specifications

• Type: Hydraulic clutch slave cylinder with retained piston
• Distance to O-ring groove: approximately 5 mm
• Overall length without rubber boot: approximately 93 mm; may vary
• OE references: 1205733, 1273681, 6843913, 8601783, 41435733

Installation and use

• Remove the boot and confirm the presence of an external retaining circlip.
• Verify compatibility with the release fork, gearbox and master-cylinder combination.
• Install with the bleed nipple uppermost and bleed thoroughly.
