Clutch Slave Cylinder Volvo 240 740 760 940 Loose Piston

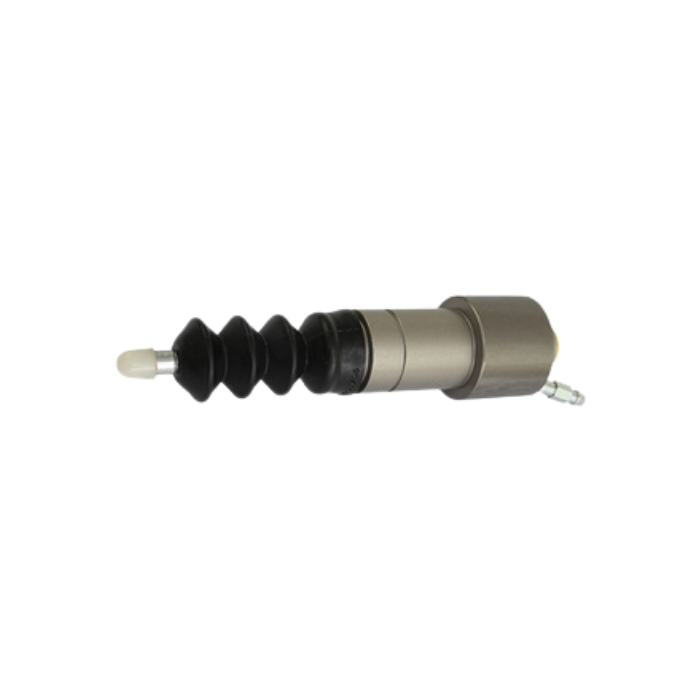

Clutch slave cylinder for Volvo 240/740/760/940 – loose piston

Hydraulic clutch slave cylinder with a loose piston and no external retaining circlip. Intended for selected rear-wheel-drive Volvo applications using hydraulic clutch operation.

• Loose-piston design without an external retaining ring
• Suitable for selected Volvo 240, 740, 760 and 940 applications
• Common in road, rally, drifting and circuit builds
• Compatible with standard glycol-based clutch fluids

Technical specifications

• Piston diameter: 20.6 mm
• Distance to O-ring groove: approximately 11 mm
• Overall length without boot: approximately 96 mm; may vary by manufacturer
• OE references: 6814592, 6843914, 8601784, 41431784, KN20010B1, 50-9350

Installation and use

• Remove the boot and verify that the existing cylinder has a loose projecting piston.
• Check master-cylinder sizing and travel on vehicles with gearbox conversions.
• Install with the bleed nipple uppermost and bleed with DOT 4 or glycol-based DOT 5.1.
